Fragmentation Grayscale#

Grayscale Fragmentation extends the binary FOS approach to continuous-value rasters where pixel values represent foreground intensity from 0 to 100 (e.g., tree cover density percentage). Instead of counting foreground pixels as binary present/absent, the grayscale methods use the actual pixel intensity values in the computations, providing a more nuanced assessment of landscape connectivity.

The foreground threshold for_threshold defines the minimum pixel intensity required for a pixel to be classified as foreground and thus processed by the analysis. Pixels with values below this threshold are treated as non-foreground — they are not analysed themselves, but their actual values (including zero) still contribute to the computation within the moving windows of neighbouring foreground pixels. For example, with a tree cover density map and for_threshold=30, only pixels with ≥30% canopy cover are considered “forest” and receive a fragmentation score, while pixels with 1–29% cover still influence the density and connectivity of adjacent forest pixels through their actual values. Setting for_threshold=1 processes all non-zero pixels as foreground; higher thresholds allow the user to focus the analysis on denser canopy areas from the same input map without reclassification.

Three methods are available:

FAD (Foreground Area Density): sum of pixel values in the window divided by the maximum possible sum (all pixels at 100).
FAC (Foreground Area Clustering): average of pixel pair values where both pixels are foreground, divided by the maximum possible.
FED (Foreground Edge Density): average of pixel pair values for any pair involving at least one foreground pixel, divided by the maximum possible.

Input conventions:

0 = Background
1–100 = Foreground intensity (percentage)
255 = NoData

Functions#

pyguidos.frag_gray(in_tiff, method, window_size, for_threshold, connectivity=4, outdir=None, statists=True, stat_files=True, verb=False)#

Performs grayscale Fragmentation analysis on a continuous-value raster where pixel values represent foreground intensity from 0 to 100, classifying landscape fragmentation into five classes: Rare, Patchy, Transitional, Dominant and Interior.

Parameters:

in_tiff (str or Path) – Path to input GeoTIFF (uint8: 0=Non-foreground, 1-100=Foreground intensity %, 255=NoData).
method (str) – Fragmentation method: 'FAD' (Foreground Area Density), 'FAC' (Foreground Area Clustering) or 'FED' (Foreground Edge Density).
window_size (int) – Size of the moving window in pixels. Must be an odd integer >= 3.
for_threshold (int) – Foreground threshold value from 1 to 100. Pixels below this value are treated as non-foreground during computation.
connectivity (int, optional) – Pixel connectivity for FAC and FED methods, 4 or 8. Ignored for FAD.
outdir (str or Path, optional) – Output directory. If None (default), outputs are written to the input file’s directory.
statists (bool, optional) – If True, computes and returns statistics.
stat_files (bool, optional) – If True, writes .txt, .csv and .png report files.
verb (bool, optional) – If True, prints progress messages.

Returns:

dict – A dictionary containing three main sections:

"output paths" (dict or None):
- "path tif" (str) – Absolute path to the result GeoTIFF.
- "path txt" (str) – Absolute path to the statistics report.
- "path csv" (str) – Absolute path to the per-value pixel count CSV.
- "path png" (str) – Absolute path to the foreground pixel histogram.
"input stats" (dict):
- "in foreground pxl" (int) – Input foreground pixel count (values 1-100, before thresholding).
- "in background pxl" (int) – Input background pixel count (value 0).
- "out foreground pxl" (int) – Output foreground pixel count (after thresholding).
- "out background pxl" (int) – Output background pixel count (after thresholding).
- "missing pxl" (int) – Count of NoData pixels.
"output stats" (dict):
- "class freq" (dict) – Pixel counts per fragmentation class ("1 rare pxl", "2 patch pxl", "3 trans pxl", "4 domin pxl", "5 inter pxl").
- "fad_av" (float) – Average Foreground Area Density index.
- "avcon" (float) – Average Connectivity index.

Outputs:

The function writes the following output files with stat_files=True:

<input_filename>_frag_gray_<method><connectivity>_<window_size>_t<for_threshold>.tif: Grayscale fragmentation result GeoTIFF with color palette (connectivity is omitted for FAD).
<input_filename>_frag_gray_<method><connectivity>_<window_size>_t<for_threshold>.txt: Statistics report
<input_filename>_frag_gray_<method><connectivity>_<window_size>_t<for_threshold>.csv: Per-value pixel counts and frequencies
<input_filename>_frag_gray_<method><connectivity>_<window_size>_t<for_threshold>.png: Foreground pixel histogram

Example

Standard execution of a grayscale FAD Fragmentation analysis using a tree cover density GeoTIFF file of Sardinia stored on pyguidos/data folder with a threshold set at 30% of forest cover density:

>>> import pyguidos as pg
>>> forest_density = pg.DATA_DIR / "TCD2023_sardinia.tif"
>>> frag_gray_result = pg.frag_gray(in_tiff=forest_density,
... method="FAD", window_size=27, for_threshold=30, outdir="output/",
... statists=True, stat_files=True, verb=False)
>>> frag_gray_result['output stats']['class freq']
{'1 rare pxl': 27328,
 '2 patch pxl': 357578,
 '3 trans pxl': 181611,
 '4 domin pxl': 63055,
 '5 inter pxl': 0}
>>> frag_gray_result['output paths']['path tif']
'output/TCD2023_sardinia_frag_gray_fad_27_t30.tif'

pyguidos.frag_gray_stats(frag_tiff, stat_files=True, outdir=None, source_tiff=None)#

Computes statistics for an existing grayscale Fragmentation result GeoTIFF.

Parameters:

frag_tiff (str or Path) – Path to the grayscale fragmentation result GeoTIFF (must carry a valid GTB_FOS metadata tag with tiftype='Gray').
stat_files (bool, optional) – If True, writes .txt, .csv and .png report files.
outdir (str or Path, optional) – Directory for output files. Defaults to the input file’s directory.
source_tiff (str or Path, optional) – Path to the original input GeoTIFF used to generate the fragmentation result. When provided, the input foreground/background counts are reported; otherwise they are shown as "n/a".

Returns:

dict – A dictionary containing three main sections:

"output paths" (dict or None):
- "path tif" (str) – Absolute path to the result GeoTIFF.
- "path txt" (str) – Absolute path to the statistics report.
- "path csv" (str) – Absolute path to the per-value pixel count CSV.
- "path png" (str) – Absolute path to the foreground pixel histogram.
"input stats" (dict):
- "in foreground pxl" (int or str) – Input foreground pixel count, or "n/a" when source_tiff is not provided.
- "in background pxl" (int or str) – Input background pixel count, or "n/a".
- "out foreground pxl" (int) – Output foreground pixel count (after thresholding).
- "out background pxl" (int) – Output background pixel count (after thresholding).
- "missing pxl" (int) – Count of NoData pixels.
"output stats" (dict):
- "class freq" (dict) – Pixel counts per fragmentation class ("1 rare pxl", "2 patch pxl", "3 trans pxl", "4 domin pxl", "5 inter pxl").
- "fad_av" (float) – Average Foreground Area Density index.
- "avcon" (float) – Average Connectivity index.

Outputs:

The function writes the following output files with stat_files=True:

<frag_filename>.txt: Statistics report
<frag_filename>.csv: Per-value pixel counts and frequencies
<frag_filename>.png: Foreground pixel histogram

Example

After executing the grayscale Fragmentation analysis, pass the resulting GeoTIFF to frag_gray_stats() to extract summary statistics. Provide source_tiff to report the original input pixel counts.

>>> frag_tiff = 'output/TCD2023_sardinia_frag_gray_fad_27_t30.tif'
>>> frag_gray_stats = pg.frag_gray_stats(frag_tiff=frag_tiff,
... stat_files=True, outdir='output/',
... source_tiff=pg.DATA_DIR / "TCD2023_sardinia.tif")
>>> frag_gray_stats['input stats']['out foreground pxl']
629572

Methods#

FAD: Foreground Area Density (grayscale)#

Grayscale FAD computes the sum of all pixel values in the window of size W divided by the maximum potential, where all pixels within the windows have a value of 100 (W² × 100).

\[FAD_{gray} = \frac{\sum \text{pixel values}}{W^2 \times 100} \times 100\]

Where \(a_i\) is the pixel value, and \(W\) is the window size. The denominator scales by 100 because the maximum possible pixel value is 100.

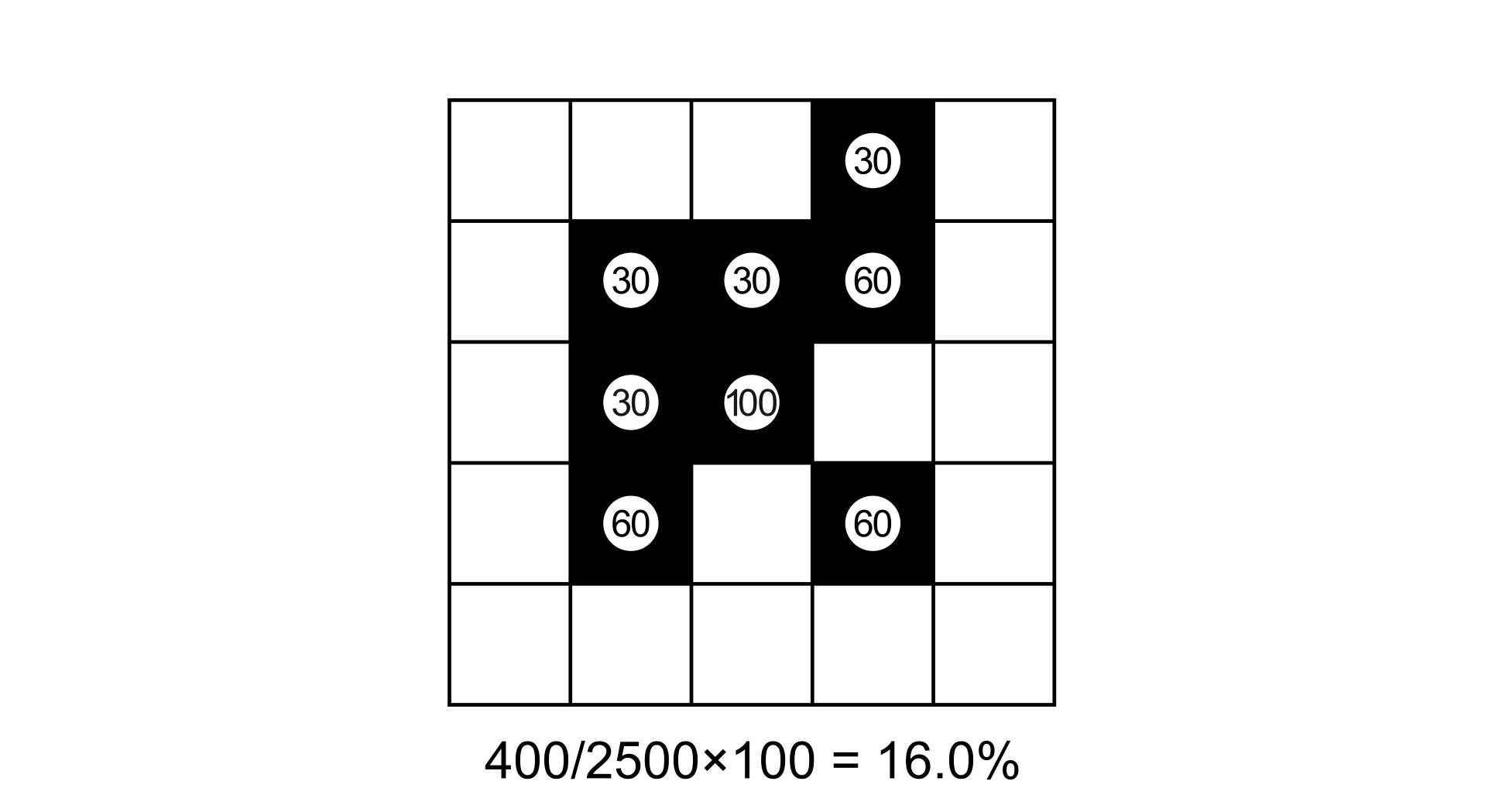

FAD grayscale method — Grayscale FAD computation on a 5×5 window. Grey pixel values represent foreground intensity (0–100). Each pixel value contributes directly to the sum (shown in the circles). The result is the sum of all values divided by the maximum potential (5 × 5 × 100 = 2500).#

FAC: Foreground Area Clustering (grayscale)#

Grayscale FAC computes the edge value as the average of two adjacent pixel values, but only for pairs where both pixels are foreground (i.e., both ≥ 1). Pairs where one or both pixels are 0, the edge scores 0.

\[FAC_{gray} = \frac{\sum_{a>0,\, b>0} \frac{a + b}{2} }{\text{total edges} \times 100} \times 100\]

Where \(a\) and \(b\) are the pixel values of foreground-foreground pairs, so \(a>0\) and \(b>0\). The denominator scales by 100 because the maximum possible edge value is 100 (when both pixels are at 100%).

Total edges 4-conn. = \(2 \times W \times (W-1)\)
Total edges 8-conn. = \(2 \times (W-1) \times (2W-1)\)

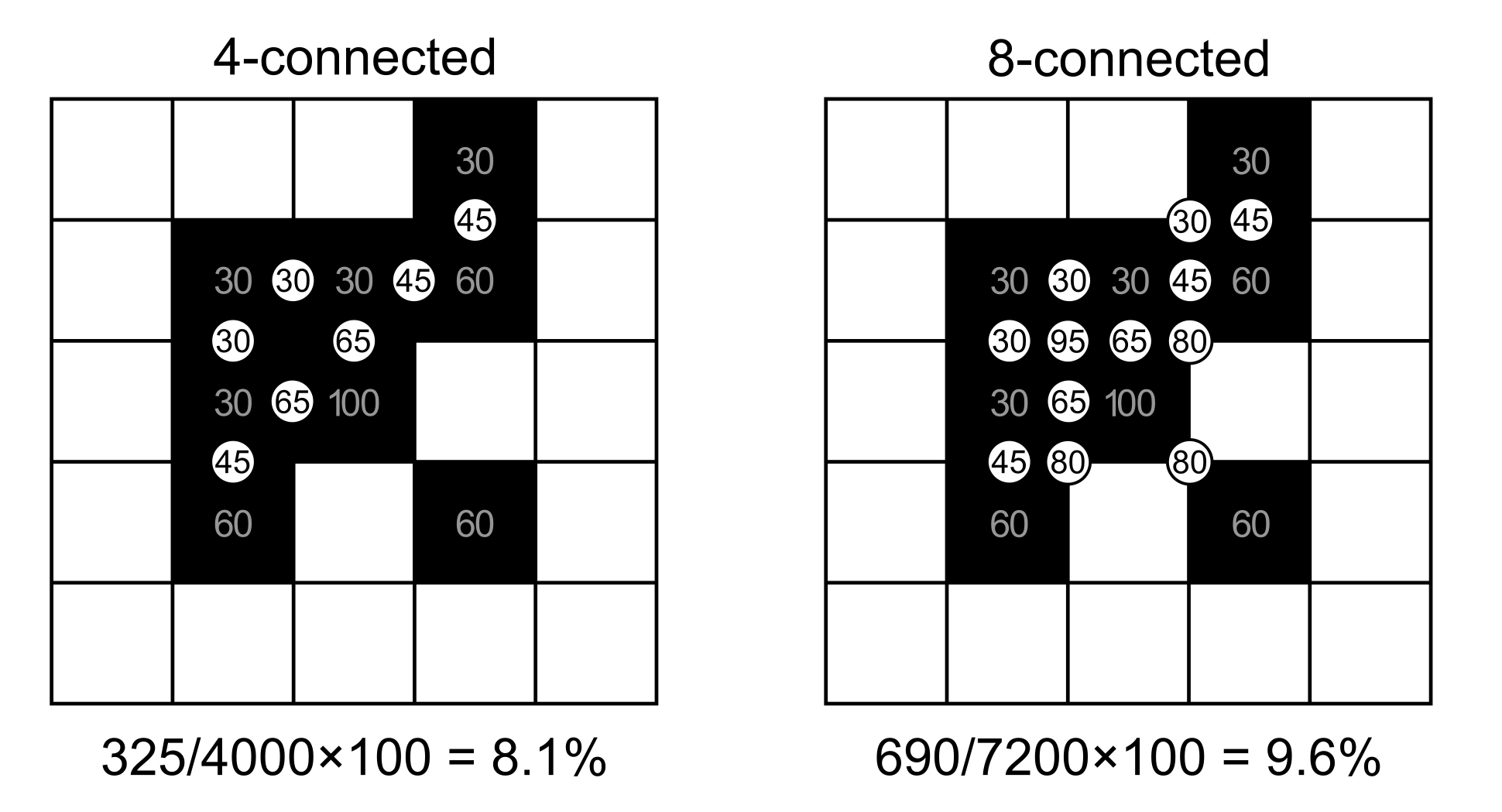

FAC grayscale method — Grayscale FAC computation on a 5×5 window for both 4- and 8-connectivity. Each circle shows the average of the two adjacent pixel values, but only for pairs where both pixels are foreground (≥ 1). Pairs involving non-foreground pixels score 0 and are not shown.#

FED: Foreground Edge Density (grayscale)#

Grayscale FED computes the edge value as the average of two adjacent pixel values for any pair involving at least one foreground pixel. This means foreground–background boundaries also contribute (with reduced weight since background value is 0), while background–background pairs score 0.

\[FED_{gray} = \frac{\sum_{all} \frac{a + b}{2}}{\text{total edges} \times 100} \times 100\]

Where \(a\) and \(b\) are the pixel values of all pixel pairs. The denominator scales by 100 because the maximum possible edge value is 100 (when both pixels are at 100%).

Total edges 4-conn. = \(2 \times W \times (W-1)\)
Total edges 8-conn. = \(2 \times (W-1) \times (2W-1)\)

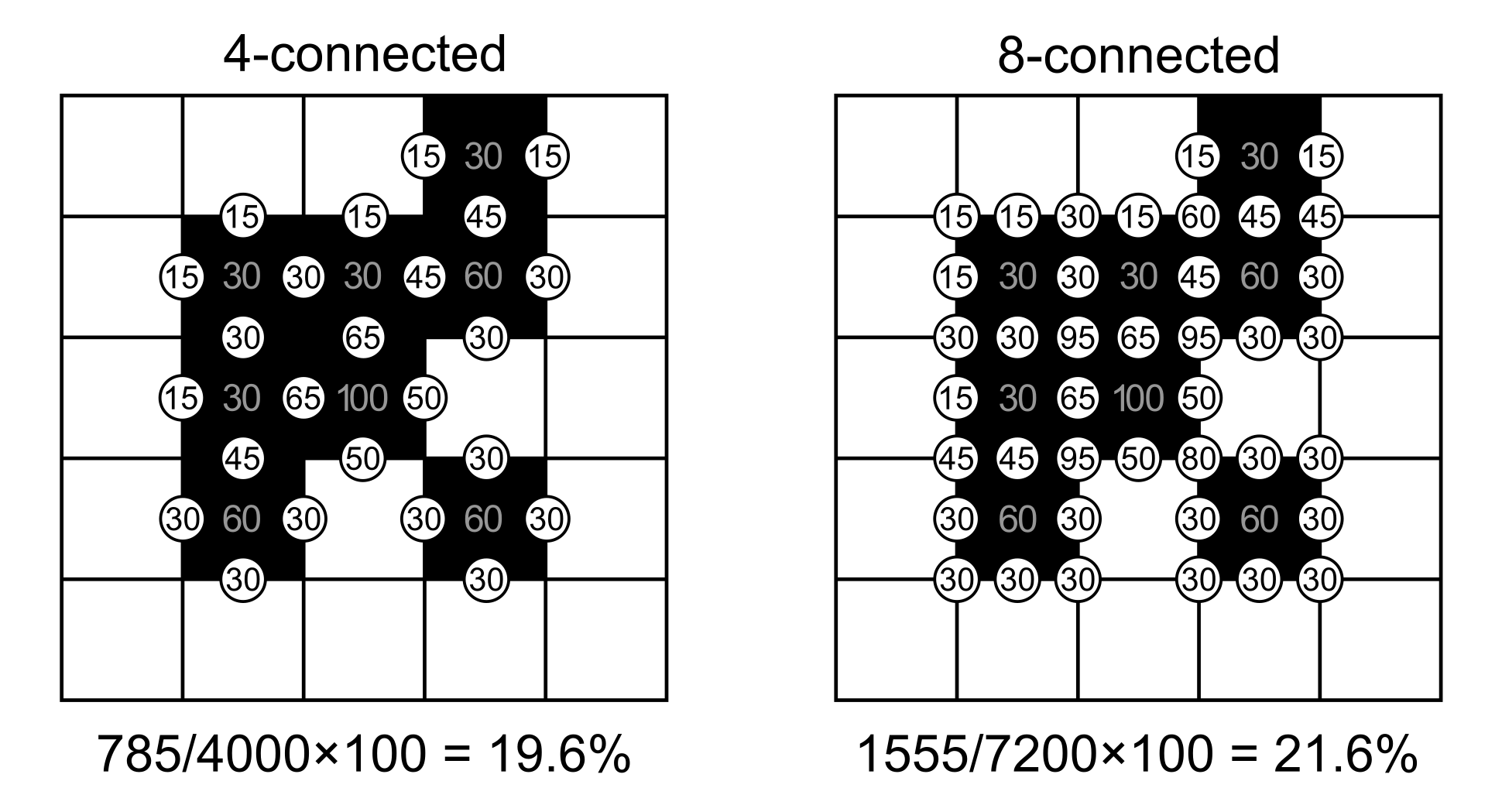

FED grayscale method — Grayscale FED computation on a 5×5 window for both 4- and 8-connectivity. Each circle shows the average of the two adjacent pixel values. Unlike FAC, pairs where one pixel is foreground and the other is background also contribute (with half the foreground value).#

Output Classes#

The output classification follows the same 5-class scheme as binary fragmentation:

Foreground cover class	FOS range	Fragmentation	Connectivity
Rare	0 – 10%	Very low	Very high
Patchy	10 – 40%	Low	High
Transitional	40 – 60%	Medium	Medium
Dominant	60 – 90%	High	Low
Interior	90 – 100%	Very high	Very low
