Landscape Mosaic#

The Landscape Mosaic analysis classifies each pixel based on the proportional composition of three land cover classes within a moving window. The result describes the local landscape context of each pixel in terms of the dominant land cover mixture, producing up to 103 compositional classes subsequently remapped to 19 aggregated classes. The methodology is described in detail in the Landscape Mosaic sheet.

Functions#

pyguidos.landmos(in_tiff, window_size, outdir=None, statists=True, stat_files=True, out_colors='bgr', verb=False)#

Performs Landscape Mosaic analysis on a three-class raster using a moving window. Each pixel is classified from the proportional composition of the three land cover classes within the window, producing up to 103 compositional classes that are also remapped to 19 aggregated classes.

Parameters:

  • in_tiff (str or Path) – Path to input GeoTIFF (uint8: 0=NoData, 1=Class 1 e.g. Agriculture, 2=Class 2 e.g. Natural, 3=Class 3 e.g. Developed).

  • window_size (int) – Size of the moving window in pixels. Must be an odd integer >= 3.

  • outdir (str or Path, optional) – Output directory. If None (default, outputs are written to the input file’s directory.

  • statists (bool, optional) – If True, computes and returns statistics.

  • stat_files (bool, optional) – If True, writes .txt, .csv and .png report files.

  • out_colors (str, optional) – Color scheme for the 103-class output colormap: 'agr', 'ant', 'bgr', 'dev', 'div' or 'nat'.

  • verb (bool, optional) – If True, prints progress messages.

Returns:

dict – A dictionary containing three main sections:

  • "output paths" (dict or None):

    • "path tif 103cl" (str) – Absolute path to the 103-class result GeoTIFF.

    • "path tif 19cl" (str) – Absolute path to the aggregated 19-class result GeoTIFF.

    • "path txt" (str) – Absolute path to the statistics report.

    • "path csv" (str) – Absolute path to the per-value pixel count CSV.

    • "path csv hm" (str) – Absolute path to the ternary diagram data table CSV.

    • "path png" (str) – Absolute path to the ternary diagram heatmap.

  • "input stats" (dict):

    • "class1 pxl" (int) – Count of input Class 1 pixels.

    • "class2 pxl" (int) – Count of input Class 2 pixels.

    • "class3 pxl" (int) – Count of input Class 3 pixels.

    • "foreground pxl" (int) – Total count of valid (non-missing) pixels.

    • "missing pxl" (int) – Count of NoData pixels.

  • "output stats" (dict):

    • "pxl numb 103cl" (dict) – Pixel counts for the detailed 103-class classification.

    • "pxl numb 19cl" (dict) – Pixel counts for the aggregated 19-class classification.

Outputs:

The function writes the following output files with stat_files=True:

  • <input_filename>_lm_<window_size>_103class_<out_colors>.tif: 103-class Landscape Mosaic result GeoTIFF with color palette

  • <input_filename>_lm_<window_size>_19class.tif: 19-class remapped result GeoTIFF

  • <input_filename>_lm_<window_size>.txt: Statistics report

  • <input_filename>_lm_<window_size>.csv: Per-value pixel counts and frequencies

  • <input_filename>_lm_<window_size>_heatmap.csv: Ternary diagram data table

  • <input_filename>_lm_<window_size>_heatmap.png: Ternary diagram heatmap

Example

Standard execution of the Landscape Mosaic analysis on a three-class land cover GeoTIFF file of Corsica stored on pyguidos/data folder:

>>> import pyguidos as pg
>>> land_mosaic = pg.DATA_DIR / "CLC2018_corsica_LandMos.tif"
>>> lm_result = pg.landmos(in_tiff=land_mosaic, window_size=31,
... outdir="output/", statists=True, stat_files=True,
... out_colors='bgr', verb=False)
>>> lm_result
>>> lm_result['output paths']['path tif 19cl']
{'0-NoData': 932069,
 '1-A': 6529,
 '2-D': 67,
 '3-N': 255326,
 '4-Ad': 2881,
 '5-An': 22953,
 '6-Dn': 1127,
 '7-Da': 147,
 '8-Na': 155467,
 '9-Nd': 12571,
 '10-Adn': 3107,
 '11-Dan': 414,
 '12-Nad': 11010,
 '13-ad': 595,
 '14-an': 35228,
 '15-dn': 1874,
 '16-adn': 32867,
 '17-NN': 330442,
 '18-AA': 326,
 '19-DD': 0}
pyguidos.landmos_stats(lm_tiff, stat_files=True, outdir=None, source_tiff=None)#

Computes statistics for an existing 103-class Landscape Mosaic result GeoTIFF and generates the ternary diagram heatmap.

Parameters:

  • lm_tiff (str or Path) – Path to the 103-class Landscape Mosaic result GeoTIFF (must carry a valid GTB_LM metadata tag).

  • stat_files (bool, optional) – If True, writes .txt, .csv and .png report files.

  • outdir (str or Path, optional) – Directory for output files. Defaults to the input file’s directory.

  • source_tiff (str or Path, optional) – Path to the original three-class input GeoTIFF. When provided, per-class input pixel counts are reported; otherwise they are shown as "n/a".

Returns:

dict – A dictionary containing three main sections:

  • "output paths" (dict or None):

    • "path tif 103cl" (str) – Absolute path to the used 103-class GeoTIFF.

    • "path txt" (str) – Absolute path to the statistics report.

    • "path csv" (str) – Absolute path to the per-value pixel count CSV.

    • "path csv hm" (str) – Absolute path to the ternary diagram data table CSV.

    • "path png" (str) – Absolute path to the ternary diagram heatmap.

  • "input stats" (dict):

    • "class1 pxl" (int or str) – Count of input Class 1 pixels, or "n/a" when source_tiff is not provided.

    • "class2 pxl" (int or str) – Count of input Class 2 pixels, or "n/a".

    • "class3 pxl" (int or str) – Count of input Class 3 pixels, or "n/a".

    • "foreground pxl" (int) – Total count of valid (non-missing) pixels.

    • "missing pxl" (int) – Count of NoData pixels.

  • "output stats" (dict):

    • "pxl numb 103cl" (dict) – Pixel counts for the detailed 103-class classification.

    • "pxl numb 19cl" (dict) – Pixel counts for the aggregated 19-class classification.

Outputs:

The function writes the following output files with stat_files=True:

  • <lm_filename>.txt: Statistics report

  • <lm_filename>.csv: Per-value pixel counts and frequencies

  • <lm_filename>_heatmap.csv: Ternary diagram data table

  • <lm_filename>_heatmap.png: Ternary diagram heatmap

Example

After executing the Landscape Mosaic analysis, pass the 103-class result GeoTIFF to landmos_stats() to extract summary statistics. Provide source_tiff to report the per-class input pixel counts.

>>> lm_tiff = 'output/my_landcover_lm_31_103class_bgr.tif'
>>> lm_stats = pg.landmos_stats(lm_tiff=lm_tiff, stat_files=True,
... outdir='output/', source_tiff="my_landcover.tif")
>>> lm_stats['input stats']
{'class1 pxl': 98525,
 'class2 pxl': 751504,
 'class3 pxl': 22902,
 'foreground pxl': 872931,
 'missing pxl': 932069}

Output Classes#

The 19-class aggregation is based on the proportion of the three input land cover classes within the moving window. By default, the three classes are interpreted as:

Pixel Value

Default Interpretation

Color

1

Agriculture

Blue

2

Natural

Green

3

Developed

Red

Note

The class assignment is purely conventional. Pixel values 1, 2 and 3 can represent any three mutually exclusive land cover types defined by the user (e.g. Forest/Non-forest/Water, Urban/Rural/Natural). The labels Agriculture, Natural and Developed are used throughout this documentation for consistency with the GuidosToolbox convention, but the analysis is valid for any three-class input map.

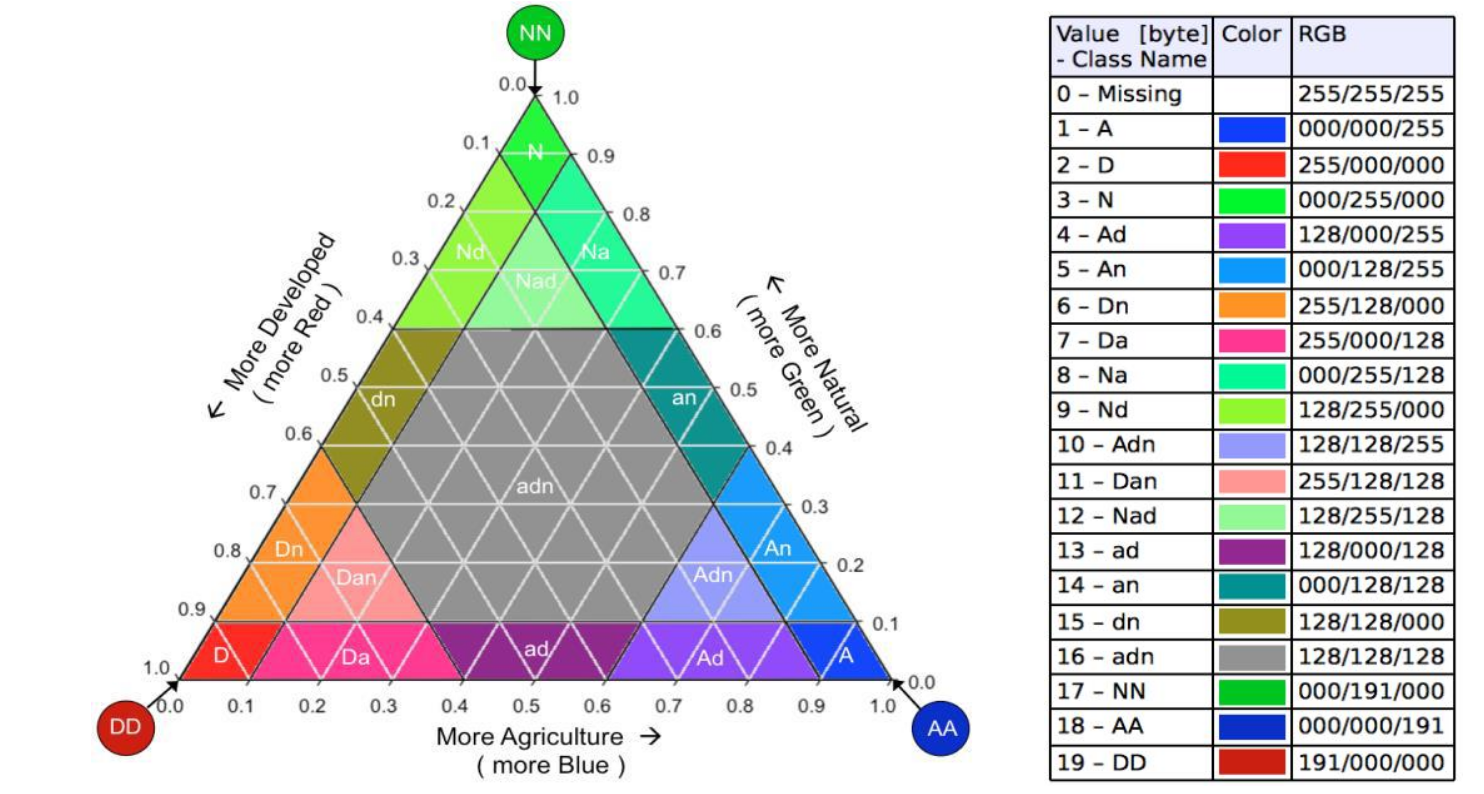

LM triangle

The Landscape Mosaic triangle with the 19 classes and their proportions to the three land cover types Agriculture, Natural, and Developed.#

Each of the 19 aggregated classes is defined by the combination of proportions of the three input classes within the moving window:

Landscape Mosaic 19-class aggregation scheme.#

N

Code

Description

AGR [%]

NAT [%]

DEV [%]

1

A

Agriculture dominant

[80-100[

[0-10[

[0-10[

2

D

Developed dominant

[0-10[

[0-10[

[80-100[

3

N

Natural dominant

[0-10[

[80-100[

[0-10[

4

Ad

Agriculture with Developed

[60-90[

[0-10[

[10-60[

5

An

Agriculture with Natural

[60-90[

[10-40[

[0-10[

6

Dn

Developed with Natural

[0-10[

[10-40[

[60-90[

7

Da

Developed with Agriculture

[10-40[

[0-10[

[60-90[

8

Na

Natural with Agriculture

[10-40[

[60-90[

[0-10[

9

Nd

Natural with Developed

[0-10[

[60-90[

[10-40[

10

Adn

Agriculture dominant mixed

[60-80[

[10-40[

[10-40[

11

Dan

Developed dominant mixed

[10-40[

[10-40[

[60-80[

12

Nad

Natural dominant mixed

[10-40[

[60-80[

[10-40[

13

ad

Agriculture-Developed transition

[30-60[

[0-10[

[30-60[

14

an

Agriculture-Natural transition

[30-60[

[30-60[

[0-10[

15

dn

Developed-Natural transition

[0-10[

[30-60[

[30-60[

16

adn

Mixed transition

[10-60[

[10-60[

[10-60[

17

NN

Pure Natural (100%)

[0]

[100]

[0]

18

AA

Pure Agriculture (100%)

[100]

[0]

[0]

19

DD

Pure Developed (100%)

[0]

[0]

[100]

References#

  • Riitters K H, Wickham J D, Wade T G, 2009. An indicator of forest dynamics using a shifting landscape mosaic. Ecological Indicators 9: 107-117. DOI: 10.1016/j.ecolind.2008.02.003.

  • Vogt P, Wickham J, Barredo J I, Riitters K, 2024. Revisiting the Landscape Mosaic model. PLoS ONE 19(5): e0304215. DOI: 10.1371/journal.pone.0304215.
